Integrate a CDN resource with WordPress using the CDB plugin

The Orange's CDN plugin rewrites eligible static asset URLs in rendered WordPress pages so the assets are requested through a Orange's CDN domain.

The current plugin release is version 1.1.10, last updated in September 2023. The WordPress plugin directory lists it as tested through WordPress 6.2.11 and not tested with the latest three major WordPress releases. WordPress.org states that the plugin may no longer be maintained or supported and may have compatibility issues with more recent WordPress versions. Test the plugin with the site's theme and other plugins in a staging environment before enabling it in production. If staging tests fail, deactivate Orange's CDN in Plugins so rendered pages revert to origin URLs.

The plugin does not rewrite URLs when the WordPress Home URL includes a subdirectory — https://example.com/blog — because it compares that complete Home URL with a parsed origin that contains only the scheme, hostname, and port.

  1. 1

    Prepare the CDN resource

    Create a CDN resource with the WordPress site as its origin. Add an HTTPS custom domain, cdn.example.com, and confirm that this domain can retrieve public static assets from the origin.

    Use the same protocol as the WordPress site. An HTTPS site requires an HTTPS CDN domain to prevent mixed-content errors.

  2. 2

    Install the Orange's CDN plugin

    In WordPress Admin, navigate to Plugins > Add Plugin. Search for Orange's CDN, then install and activate Orange's CDN by gcorewpress.

    The plugin is also available from the WordPress plugin directory.

  3. 3

    Enable CDN URL rewriting

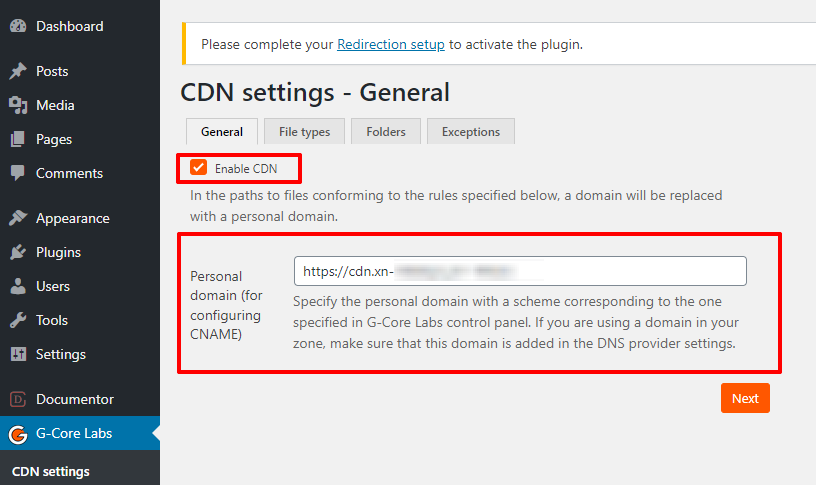

    Navigate to CDB > CDN settings. On the General tab:

    1. Turn on Enable CDN.
    2. In Personal domain (for configuring CNAME), enter the complete CDN URL with its protocol and a trailing slash — https://cdn.example.com/.

    Settings save automatically.

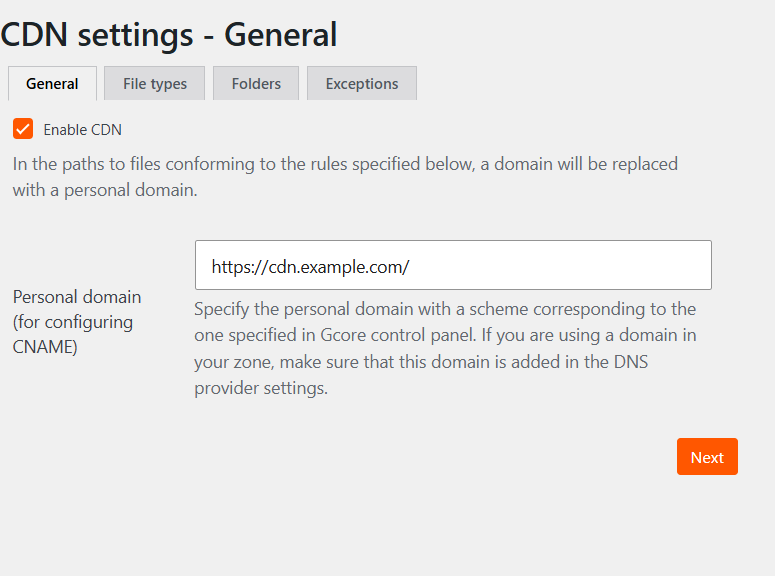

    Enable CDN URL rewriting and enter the CDN domain

  4. 4

    Select file types

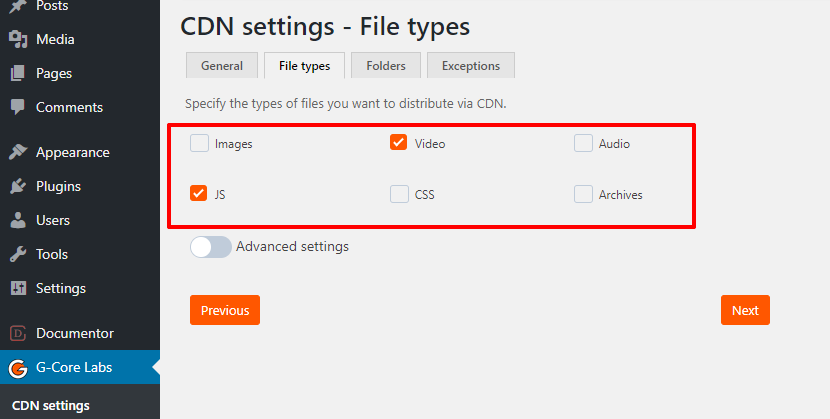

    Open the File types tab and select the categories to deliver through CDN: Type Images, Type Video, Type Audio, Type JS, Type CSS, or Type Archive.

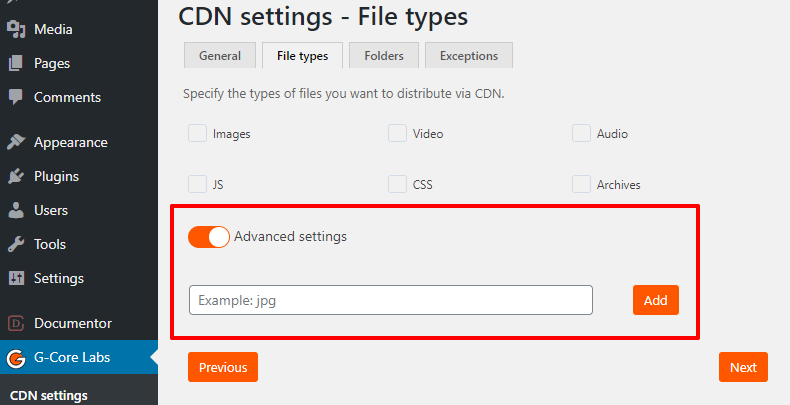

    To define individual extensions instead, turn on Advanced property, enter an extension without a leading period — avif — and select Add. Advanced mode replaces the basic category selections.

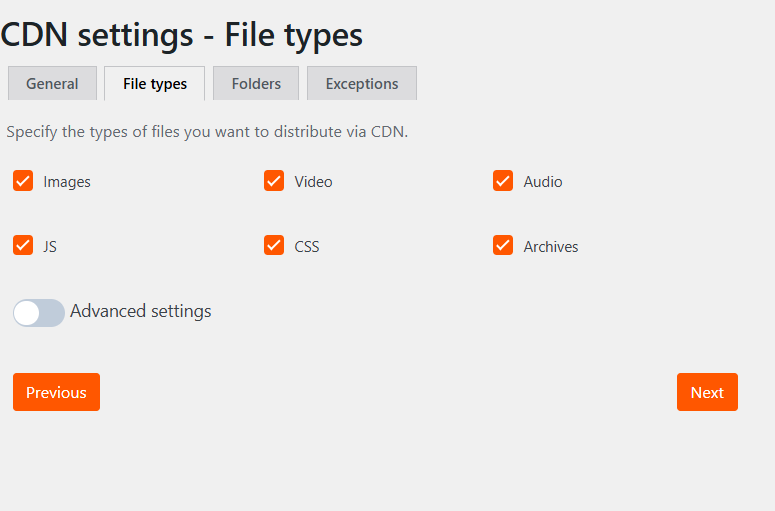

    Select file types for CDN delivery

  5. 5

    Select folders

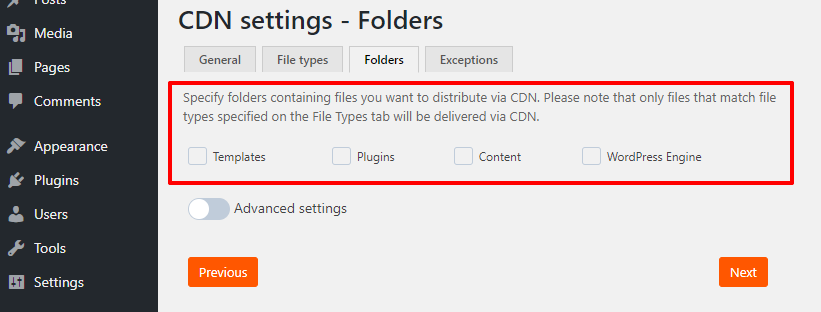

    Open the Folders tab and select the WordPress directories whose assets can use CDN:

    • Folder Templates maps to /wp-content/themes/.
    • Folder Plugins maps to /wp-content/plugins/.
    • Folder Content maps to /wp-content/uploads/.
    • Folder WordPress maps to /wp-includes/.

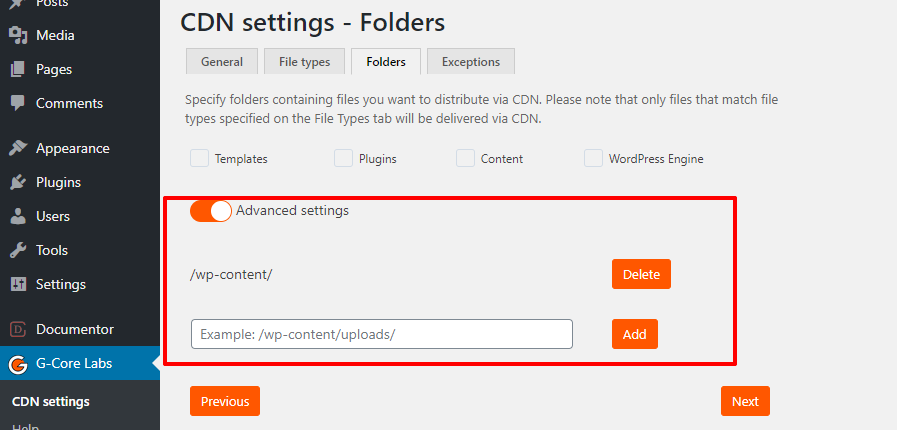

    To define another directory, turn on Advanced property, enter its root-relative path with leading and trailing slashes — /assets/ — and select Add.

    A URL must match both a selected folder and a selected file type. If no folder is selected, assets from any folder can be rewritten when their file type matches.

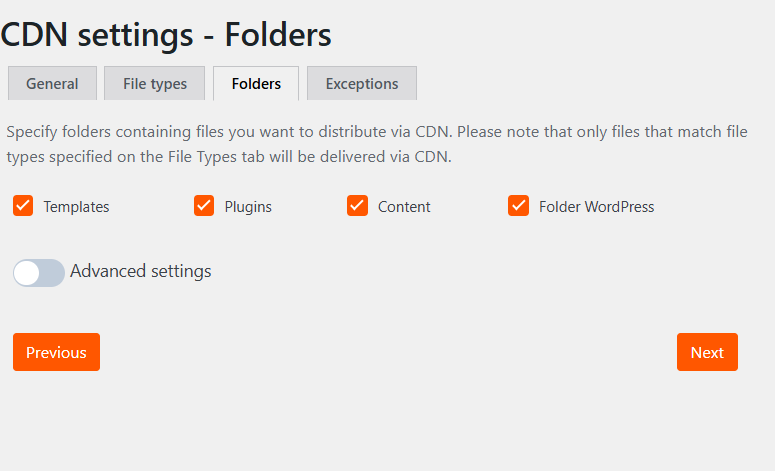

    Select WordPress folders for CDN delivery

  6. 6

    Add URL exceptions

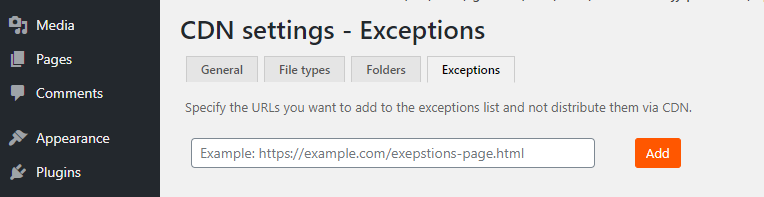

    Open the Exceptions tab to keep specific files on the origin hostname. Enter each complete origin URL — https://www.example.com/wp-content/uploads/private-image.jpg — and select Add.

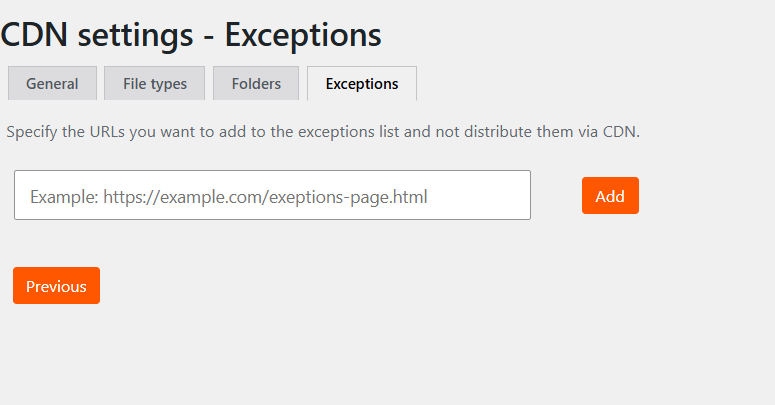

    Add an origin URL to the CDN exceptions list

  7. 7

    Verify CDN delivery

    Clear any WordPress page cache, then open the site in a private browser window. Open the browser developer tools, select Network, select Disable cache, and reload the page.

    Select a configured static asset and confirm:

    • The request URL uses the configured CDN hostname, cdn.example.com.
    • The response has a successful HTTP status.
    • A second request to a cacheable asset returns HIT in the Cache response header.

    Confirm that an exception URL continues to use the WordPress origin hostname.

URL rewriting logic

The plugin changes an origin URL to the configured CDN domain only when all applicable conditions are met:

  • The URL in rendered output is an absolute URL with the same scheme and hostname as the WordPress Home URL. Relative URLs and protocol-relative URLs that begin with // are not rewritten.
  • The complete URL is not in Exceptions.
  • The path matches a selected folder, unless no folder is selected.
  • The file extension matches a selected file type.

The plugin changes URLs in rendered page output. It does not upload files to CDN or remove them from the WordPress origin. Orange's CDN retrieves matching assets from the origin when they are first requested.

Troubleshooting

When rewritten assets fail to load from the CDN hostname, the cause is usually a missing origin path, an origin connectivity error, a mixed-content or TLS failure, a CORS header that does not allow the WordPress origin, a Content Security Policy that omits the CDN hostname, a relative or protocol-relative URL that the plugin does not rewrite, a WordPress Home URL that includes a subdirectory, or a cache that still serves the previous URL.

  • If the CDN hostname does not appear, confirm that Enable CDN is on, then check the selected file type, folder, and exceptions. Clear WordPress page caches after changing plugin settings.
  • If an asset URL stays on the origin hostname, confirm that the rendered HTML uses an absolute URL with the same scheme and hostname as the WordPress Home URL. Relative and protocol-relative URLs are not rewritten.
  • If no URLs are rewritten and WordPress is installed in a subdirectory — https://example.com/blog — the plugin cannot match the Home URL to the asset origin. It compares that complete Home URL with a parsed origin that contains only the scheme, hostname, and port.
  • For a 404 response, confirm that the origin contains the requested path and that the CDN can retrieve it.
  • For a 502 response, check the origin hostname, origin pull protocol, port, and host header in the CDN resource.
  • If the browser blocks mixed content, use HTTPS for both the WordPress site and the CDN domain.
  • If fonts or scripts are blocked by CORS, inspect the browser console, and then add an Access-Control-Allow-Origin response header on the CDN asset that allows the WordPress origin — https://www.example.com.
  • If scripts, styles, or fonts are blocked by Content Security Policy, inspect the browser console, and then allow cdn.example.com in the WordPress site's applicable Content Security Policy directives.
  • If updated assets remain stale, purge CDN cache and clear any WordPress page cache.
